Soft Pedestrian 360™
A next-generation pedestrian ADAS target providing unrivalled realism, durability, and vehicle protection.
A next-generation pedestrian ADAS target providing unrivalled realism, durability, and vehicle protection.

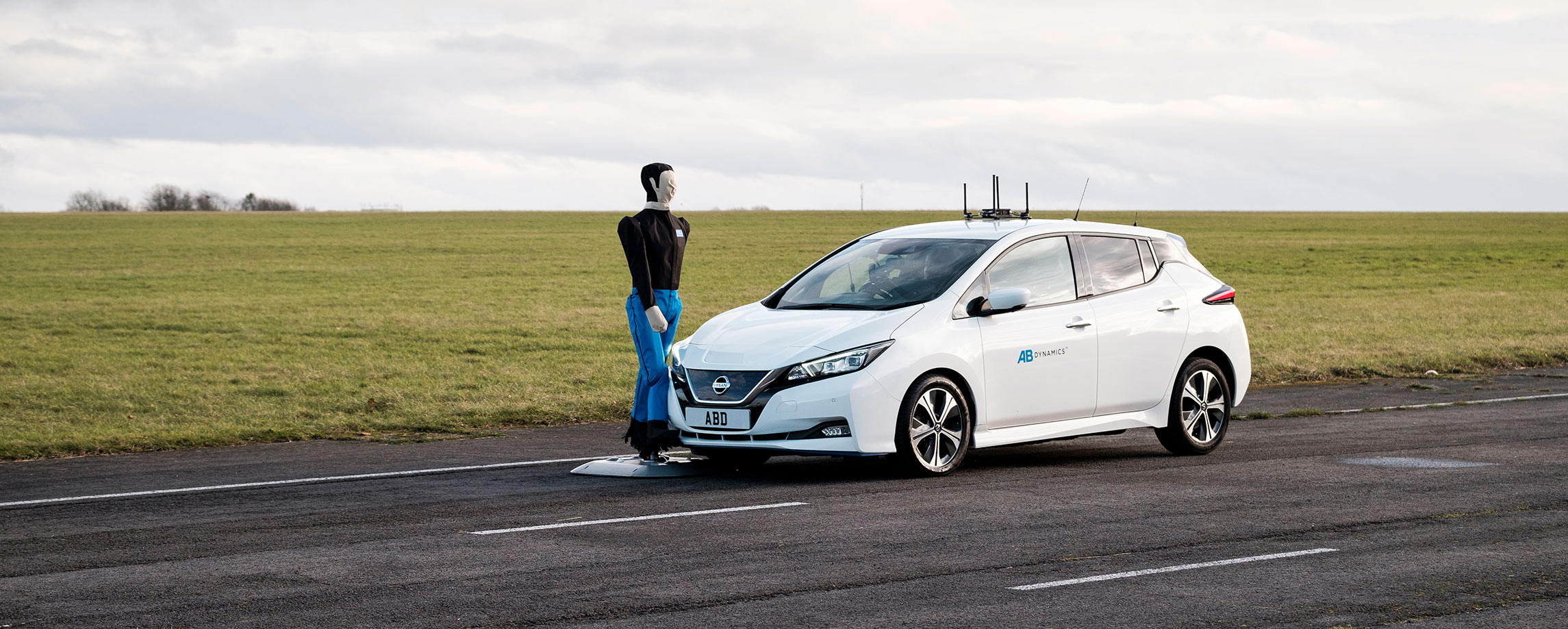

Developed by DRI, the Soft Pedestrian 360 reimagines the VRU pedestrian target, and its design has been carefully considered to reduce lifespan cost, minimise damage to test vehicles and improve realism. By using the Soft Pedestrian 360 target, the automotive industry can more accurately test the safety of their vehicles and ensure they are future-proofed for increasingly demanding ADAS testing and development activities.

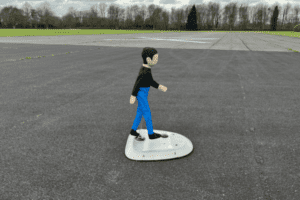

The Soft Pedestrian 360 is available in both adult and child variants, and compatible with the SPT and all our LaunchPad models, including the LaunchPad Spin.
Configurable to allow active articulation of the knee, hip, shoulder and neck, the Soft Pedestrian 360 has been designed with improved sensor perception and categorisation in mind. Its “step-in-sync” gait is automatically synchronised with the target’s position, speed and acceleration, avoiding the “Flintstoning” phenomenon.
Operators can enjoy increased testing flexibility, as the articulating arms and head can be swapped for static units or changed to increase the variety of testing. Whether conducting NCAP tests or development work, the Soft Pedestrian 360 is a cost-effective and efficient solution for ADAS testing.
Compatible with our LaunchPad target range, the Soft Pedestrian 360 takes pedestrian target testing to a new level with its focus on four key areas: realism, durability, damage minimisation, and configurability.
Adult | Child | |
---|---|---|
Height |
1800 mm |
1154 mm |
Shoulder width |
500 mm |
308 mm |
Weight |
6 kg (fully articulated) |
2.6 kg |
Adult | Child | |
---|---|---|
Maximum collision speed |
80 km/h |
60 km/h |
Adult | Child | |
---|---|---|
Ultrasonic |
Yes |
Yes |
Mono/stereo camera |
Yes |
Yes |
Lidar |
Yes |
Yes |
Radar |
Yes |
Yes |
Near infrared |
Yes |
Yes |
Adult | Child | |
---|---|---|
Full |
Hip, knee, shoulder, neck |
– |
Standard |
Hip, knee, shoulder |
– |
Basic |
Hip, knee |
Hip, knee |
Adult | Child | |
---|---|---|
Euro NCAP TB029 |
Yes |
In progress |
ISO 19206-2 |
Yes |
Yes |
