Chinese Ground Traffic Control™
Enhanced safety, monitoring, and control of proving ground test traffic.
Product overview
Ground Traffic Control (GTC) manages complex testing scenarios by providing centralised monitoring, control, and coordination of test track traffic, including VRU platforms, GSTs, driverless vehicles human-driven vehicles.
Its versatility makes it ideal for a wide range of track testing applications, such as durability and misuse testing and multi-vehicle highway scenario testing. To ensure safety in mixed traffic scenarios, the system is equipped with collision detection and prevention, which slows robot-controlled vehicles and alerts human drivers. GTC enhances productivity and cooperation by having a customisable interface, multi-screen support, and role-based access.
Specifications
GTC is a revolutionary system for managing driverless misuse and durability applications and complex multi-vehicle testing scenarios.
Server dimensions
187 x 137 x 42 mm
Server weight
0.86 kg
Server temperature rating
Ambient operating temperature: 0 to +45 °C
Server power input
12V 2A supply provided by AB Dynamics
Max number of connected objects
24
Concurrent base station operators
6* (Operator and Viewer licences available)
Platforms supported

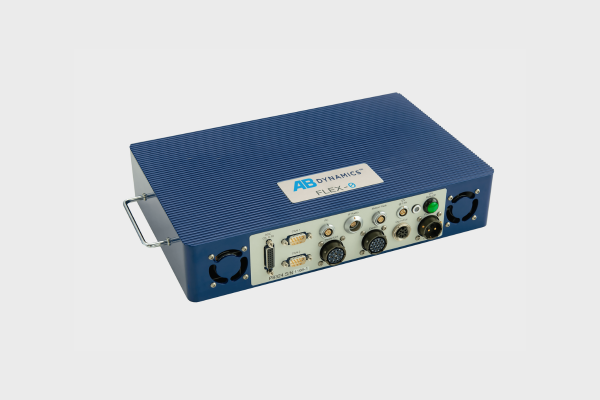

All AB Dynamics driving robots and Flex-0*

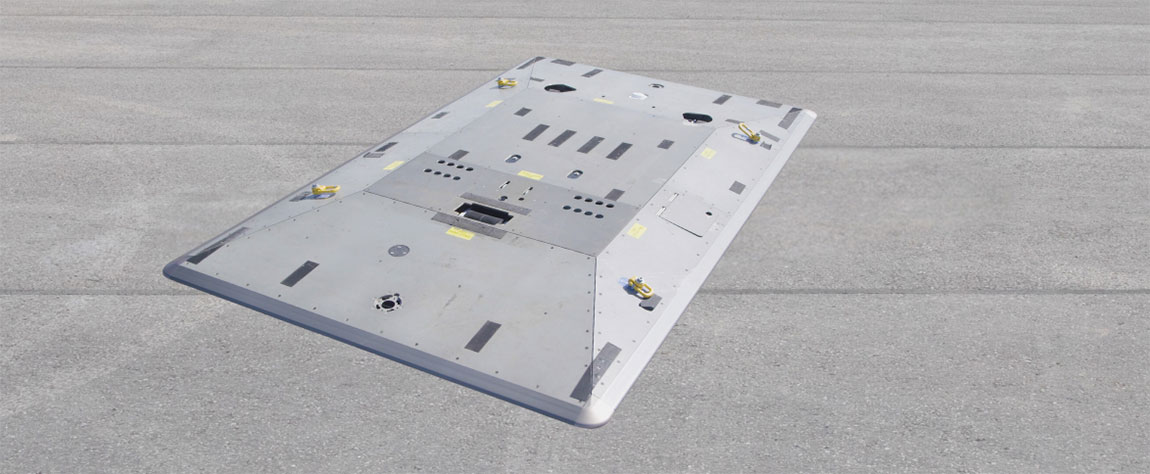

All AB Dynamics LaunchPad and GST products*
All AB Dynamics LaunchPad and GST products*
Installation suitability

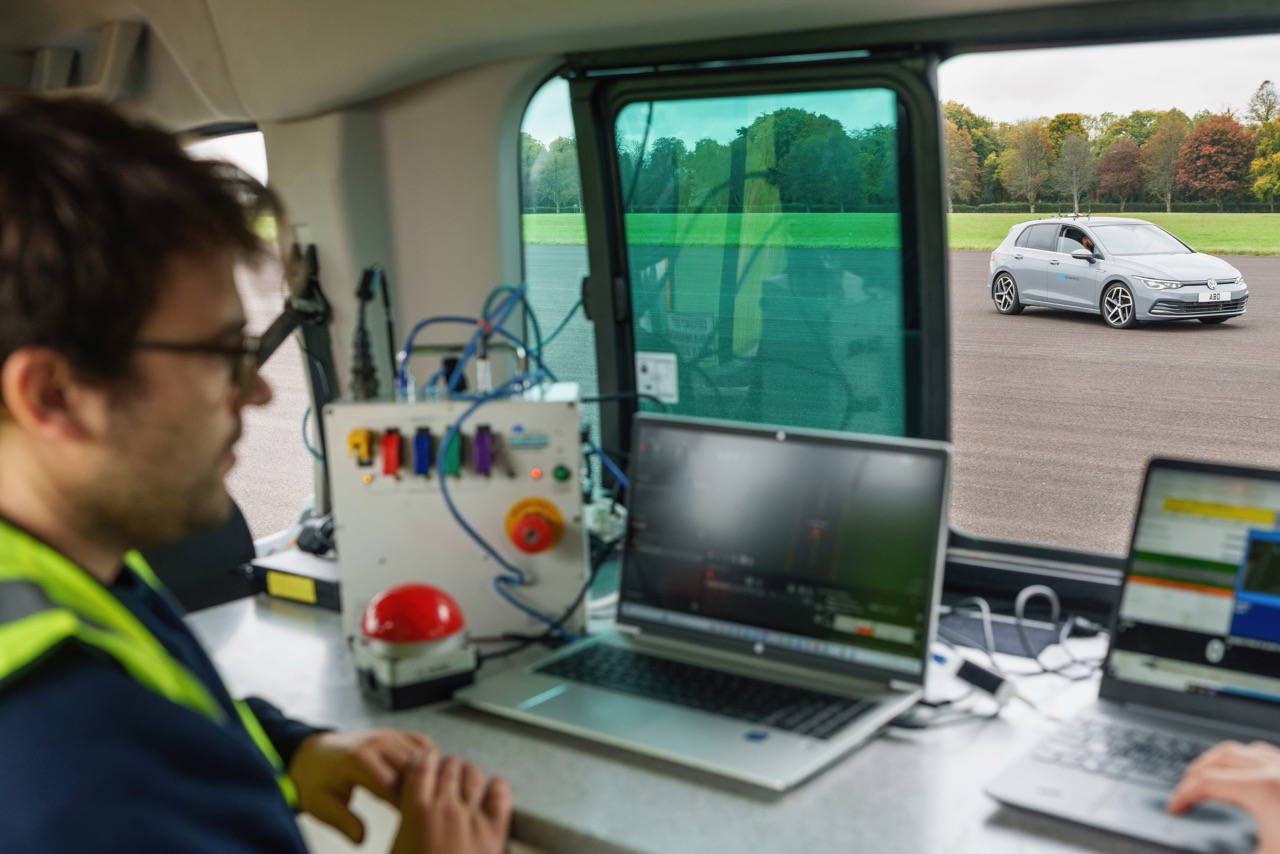

Mobile base station – van, minibus, or car Permanent control tower
* PowerPMAC based
** custom solutions available for more operators
